Gordon Murray T.50

Message par Corsugone » 05 juin 2019 07:40

À rebours de toute la production contemporaine des supercars, (hybride/boite auto) la dernière en date étant la Ferrari SF90 Stradale, Gordon Murray Automotive annonce la production d'une "vraie" supercar, la T.50. La voiture se veut la plus pure de toutes les supercars produites avec 980kg à vide, une V12 Cosworth 3.9l, 650hp à 12.100tr/min, 450Nm, boite de vitesses manuelle en H, une empreinte au sol inférieure à celle de la 911, l'aérodynamique "Fan Car" la plus évoluée jamais vu sur une voiture de route. À l'instar de la Mclaren F1, la voiture reçoit trois sièges avec celui du conducteur en position centrale. Un espace est réservé aux bagages. C'est une interprétation contemporaine de la F1.

Prix £2M H.T, production limitée à 100 voitures, premières livraisons début 2022.


- Designed to the same exacting engineering standards as the driver-focused McLaren F1; improves upon its iconic predecessor in every way
- Mid-engine and rear-wheel-drive layout; famed central driving position and
- H-pattern gearbox all key to a matchless experience behind the wheel
- All-new V12 to be the highest-revving engine ever used in a production car; produces unrivalled power-to-weight
- ‘Fan car’ technology delivers the most advanced aerodynamics yet seen on a road car
- Unique carbon fibre tub and a focus on minimising the weight of every component underpin ‘lightweighting’ strategy – overall weight is just 980kg
- New model will set new standards for supercar packaging, providing driver and two passengers with exceptional comfort, safety, practicality and luggage space
- Only 100 exclusive models to be produced costing in excess of £2m (before taxes); deliveries from early 2022.

Gordon Murray Automotive, sister-business of visionary vehicle design and engineering company Gordon Murray Design, has announced details of its first vehicle – the T.50 supercar. Conceived as the spiritual successor to the Murray-devised McLaren F1, the T.50 will be the purest, lightest, most driver-focused supercar ever built.

The development of T.50 is at an advanced stage, with full production and customer deliveries set to commence in early 2022. Just 100 owners of the T.50 will experience Murray’s vision – a supercar inspired by his 50 years at the pinnacle of Formula One and automotive industry engineering and design.

Professor Gordon Murray CBE, Chairman of Gordon Murray Group, said:“An unflinching dedication to lightweighting, highly-advanced active aerodynamics and world-leading standards of advanced engineering will ensure the T.50 rewrites the supercar rulebook. Our experienced team is applying the same uncompromising approach to design and engineering that shaped every facet of the F1, and they are able to deliver substantial improvements over that car in every meaningful way.

The engineering planning, plus all interior and exterior styling of the new vehicle has been carried out by Gordon Murray Design. It will be manufactured in the UK by Gordon Murray Automotive – a new company first announced in late 2017 at the One Formula exhibition. The event celebrated 50 years of Murray’s career in motorsport and automotive design and engineering, plus it previewed plans to build a limited-run supercar – the T.50. Every race or road car penned by Murray so far has featured a ‘T’ designation; and the T.50 will be the 50th in a highly illustrious line.

The T.50 breaks from performance-car convention, just as the F1 did in 1992. It weighs significantly less than any other current supercar. It has the most advanced aerodynamics of any road car, and it relies on design and engineering excellence to deliver the purest, most driver-focused performance and dynamics of any road car since the F1.

It will be powered by a compact and light, naturally-aspirated, all-new V12 engine. The unit will be capable of an extraordinary 12,100rpm – unparalleled in a V12 road car – and 650hp to deliver unmatched power-to-weight. However, Murray says: “I have absolutely no interest in chasing records for top speed or acceleration. Our focus is instead on delivering the purest, most rewarding driving experience of any supercar ever built – but, rest assured, it will be quick.

The T.50 adopts the same, iconic three-seat format that Murray pioneered for the F1, with the driver benefitting from a central ‘jet-fighter-style’ driving position. The new car builds on the F1’s highly-advanced aerodynamics, taking Murray’s ground-effect innovations to an all-new level with intelligent management of underbody airflow coupled with a 400mm fan at the rear. The fan actively controls underbody airflow – a feature Murray famously premiered on the Brabham BT46B Formula One ‘Fan Car’. This approach allows the upper surfaces of the car to retain purity and beauty, eschewing the exaggerated scoops and spoilers familiar in the segment and equipping the T.50 with the most advanced aerodynamics of any road car

All engineering, design and styling of the T.50 is by Gordon Murray Design and the car will be manufactured by Gordon Murray Automotive at a new, purpose-built facility in Surrey, UK. Furthermore, all major components will be bespoke and UK-sourced, including the powertrain, body and chassis. This will be a true British supercar.

The T.50, by Gordon Murray Automotive will be priced in excess of £2 million before taxes.

T.50 IN DETAIL

Setting new standards in lightweighting, the T.50 supercar weighs significantly less than any existing supercar

Automotive enthusiasts and road-test editors have discussed the concept of ‘peak supercar’ for some time,” says Murray. “The reality of chasing top speeds only adds weight, notably through ever-more powerful engines, which increase the requirement for larger, heavier ancillaries. We are taking a very different approach.

Ingrained in the approach of the Gordon Murray Automotive product development strategy is a fastidious commitment to minimise weight – in every component. “This is the key to achieving enhanced performance and dynamics, and refocusing the supercar on the driver and the thrill of driving. We’re not interested in simply chasing numbers, and never will be,” asserts Murray.

Gordon Murray Automotive will produce the world’s lightest, most driver-focused supercar through sophisticated use of advanced carbon fibre engineering and this fanatical dedication to purging the vehicle of every unproductive gram.

The T.50 supercar will weigh just 980kg – around a third lighter than the average supercar – making it, by far, the lightest supercar ever.

With a clear driver-focus, the external proportions are highly compact (smaller than the footprint of a Porsche 911 at just 4,380mm long and 1,850mm wide) to optimise handling, while the interior is nonetheless spacious and comfortable for three, with ample dedicated space for luggage.

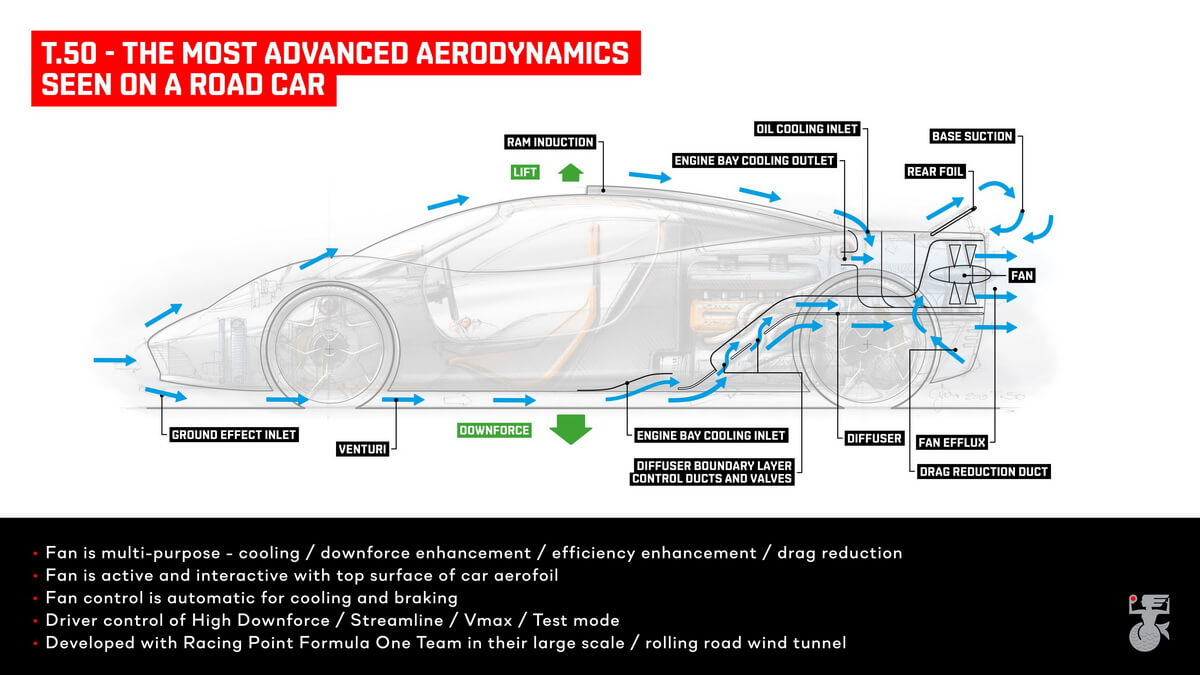

The most advanced aerodynamics of any road car

In rewriting the supercar rulebook, Gordon Murray Automotive set out to equip the T.50 supercar with the most advanced aerodynamics of any road car. The new model will feature intelligent under-body active aerodynamics, which employs continuous, dynamic and interactive underbody ground-effect systems to optimise the driving experience.

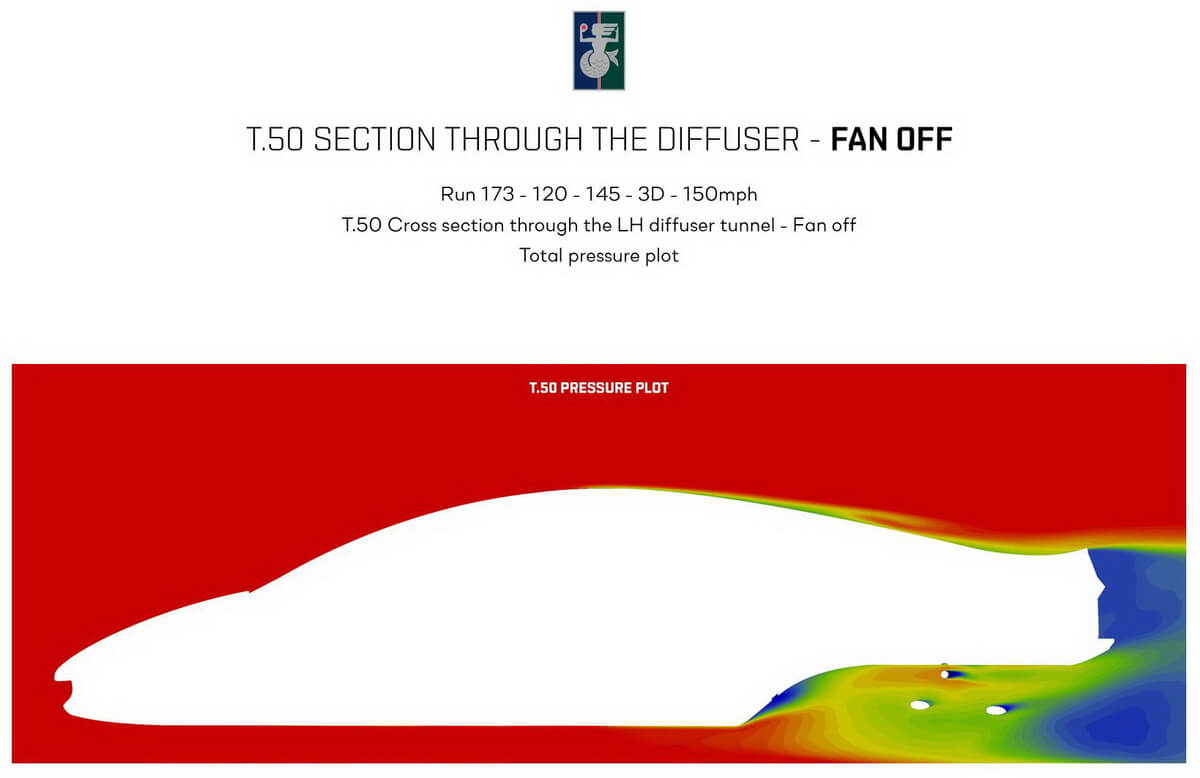

Uniquely, the supercar will feature a 400mm ground-effect fan, similar to that on Murray’s famous Brabham BT46B Formula One ‘Fan Car’. The Gordon Murray Automotive team has established a new technical partnership with a Formula One team, which will make its rolling-road wind tunnel available to develop the aerodynamics of the T.50.

With all of the car’s intelligent aerodynamic sophistication housed beneath the car, the upper surfaces are free from unsightly wings, outlets, vents and bulges, safeguarding the purity and beauty of the exterior design. The sense of drama, even when stationary, is amplified by the striking dihedral doors that hark back to the F1 – where they first appeared on a supercar.

An engineering work of art with bespoke powertrain and running gear

Through exquisite engineering, every part of the T.50 is refined to create the purest, most focused supercar ever made – “We expect this to be the last, and the greatest, ‘analogue’ supercar ever built,” says Murray.

The T.50 features a bespoke, mid-mounted, all-new V12 engine that has been designed, developed and built exclusively for Gordon Murray Automotive by Cosworth Powertrain.

The V12 3.9-litre ‘Cosworth Gordon Murray Automotive’ engine will rev to an unparalleled 12,100rpm and develops 650hp and 450Nm torque. Paired with the car’s extraordinary lightness (980kg), it achieves a power-to-weight of 663hp/ton exceeding that of any other naturally-aspirated sports car designed for the road.

The V12 Cosworth GMA engine delivers more power from four litres than the F1 produced with 6.1 litres in 1992, an achievement aided by the inclusion of roof-fed ram-air induction, which increases horsepower to around 700hp.

Cosworth Managing Director, Powertrain, Bruce Wood, said: “We are tremendously excited to be part of the T.50 supercar project, and to have the opportunity to work alongside Gordon Murray Automotive. It is a real privilege to play such a key role in the T.50 with an all-new V12 3.9-litre engine, designed, developed, manufactured and assembled by Cosworth’s industry-leading powertrain division.

Developing an engine that delivers superlative performance, while meeting stringent emissions targets, is a challenge that demonstrates Cosworth’s unique capabilities. To be so intrinsically aligned with a supercar that puts engine performance, response and light weighting at the very heart of the driving experience is the ultimate accolade and underscores Cosworth’s reputation and capabilities as a leading OEM tier one powertrain partner.

The Gordon Murray Automotive team was focused on producing the purest driving experience so rejected the use of turbos or electrified powertrain assistance, instead applying attention to engine response.

Murray adds: “By working with the team at Cosworth Powertrain we have created the greatest naturally-aspirated engine ever designed for the road. It is the highest revving, highest power density, lightest and fastest-responding naturally-aspirated V12 ever made for a road car.

Power is transferred to the rear wheels via a bespoke, lightweight six-speed transmission designed in conjunction with British transmission technology specialists Xtrac. In the furtherance of maximum driver reward and low weight, Murray has specified the T.50 with a newly-designed and developed ‘H-pattern’ six-speed gearbox – deliberately eschewing the twin-clutch solution favoured by many supercar makers. The brakes, also developed specially for the T.50, shed speed through a combination of lightweight monobloc alloy calipers and new technology carbon-ceramic discs.

Applying the same driver-focused engineering principles that shaped the F1

The T.50 supercar is the spiritual successor to the ground-breaking F1, and is being developed with the same unwavering focus on engineering purity and quality.

“Just as with the F1, we have no specific targets for acceleration, top speed or lap times,” explains Murray. “The F1 was fast because it was light and relatively small. The T.50 will deliver performance and dynamic characteristics simply out of reach for other supercars not least because of its low weight. Once again, I have focused on the complete driving experience, not horsepower or top speed.

The central driving position provides a perfect ‘jet-fighter-style’ visibility, while analogue instruments and driver-centric controls are positioned to provide an even more intuitive and immersive driving experience than the acclaimed F1.

Armed with the same mid-engined, rear-wheel-drive set-up, the new T.50 supercar has perfect weight distribution and will boast incomparable vehicle dynamics and driver feel. Despite the car’s performance capabilities, it is far from a stripped-back racer. The T.50 is an ‘everyday supercar’ capable of GT-style cruising in spacious comfort with room for driver, two passengers and luggage.

I designed the F1 as a sort of super GT car – absolutely road-focused with no plan to go racing, which is why the car set new standards for packaging and luggage space. The T.50 design has the same focus and betters the F1 in every area – ingress and egress; luggage capacity; serviceability; maintenance and suspension set-up. Also, driver-selectable engine maps ensure a driving mode to suit every situation,” concludes Murray.
"I have a problem with Porsches. They're wonderful cars, but I know I could never live with one. I don't go around saying that Porsches are a pile of dung, but I do know that psychologically I couldn't handle owning one" Rowan Atkinson.

Avatar de l’utilisateur
Corsugone
F1 Champion
Messages : 15377
Inscription : 04 mars 2008 20:10
Localisation : Chez Guignol
Contact :

Re: Gordon Murray T.50

Message par Corsugone » 05 juin 2019 17:26

"I have a problem with Porsches. They're wonderful cars, but I know I could never live with one. I don't go around saying that Porsches are a pile of dung, but I do know that psychologically I couldn't handle owning one" Rowan Atkinson.

Avatar de l’utilisateur
Corsugone
F1 Champion
Messages : 15377
Inscription : 04 mars 2008 20:10
Localisation : Chez Guignol
Contact :

Re: Gordon Murray T.50

Message par Corsugone » 06 juin 2019 11:41



"I have a problem with Porsches. They're wonderful cars, but I know I could never live with one. I don't go around saying that Porsches are a pile of dung, but I do know that psychologically I couldn't handle owning one" Rowan Atkinson.

Avatar de l’utilisateur
Corsugone
F1 Champion
Messages : 15377
Inscription : 04 mars 2008 20:10
Localisation : Chez Guignol
Contact :

Re: Gordon Murray T.50

Message par Corsugone » 07 juin 2019 14:39

Vidéo complète de la présentation par Gordon Murray de la T.50

"I have a problem with Porsches. They're wonderful cars, but I know I could never live with one. I don't go around saying that Porsches are a pile of dung, but I do know that psychologically I couldn't handle owning one" Rowan Atkinson.

Avatar de l’utilisateur
Corsugone
F1 Champion
Messages : 15377
Inscription : 04 mars 2008 20:10
Localisation : Chez Guignol
Contact :

Gordon Murray T.50

Message par Corsugone » 10 déc. 2019 18:13

"I have a problem with Porsches. They're wonderful cars, but I know I could never live with one. I don't go around saying that Porsches are a pile of dung, but I do know that psychologically I couldn't handle owning one" Rowan Atkinson.

Avatar de l’utilisateur
Corsugone
F1 Champion
Messages : 15377
Inscription : 04 mars 2008 20:10
Localisation : Chez Guignol
Contact :

Re: Gordon Murray T.50

Message par Corsugone » 10 déc. 2019 18:30

Gordon Murray Automotive – T.50 – Technical specification

Configuration

Supercar with GT capability
Coupé – central driving position

Dimensions

Length: 4,349 mm
Width: 1,850 mm
Height: 1,152 mm
Wheelbase: 2,700 mm
Front track: 1,586 mm
Rear track: 1,525 mm
Weight: 980 kg

Chassis / Body

Full carbon fibre pre-preg monocoque, carbon fibre body

Engine

Type / number: Cosworth GMA
Configuration: V12 semi-structural
V. angle: 65°
Displacement: 3,994 cc
Valve train: Double overhead camshafts / variable valve timing / 4 valves per cylinder
Lubrication system: Dry sump
Maximum power: 650 hp
Maximum torque: 450 Nm
Maximum rpm: 12,100 rpm
Starter: 48-volt integrated starter
Alternator: 48-volt ISG (integrated starter-generator)

Transmission

Configuration: Transverse all synchro constant mesh
Speeds: 6 forward and reverse
Gear selection: Manual with reverse lockout

Suspension

Front: Double wishbone with anti-roll bar
Rear: Double wishbone – included axis GSP system

Steering

TypeRack and pinion with LSPA

Aerodynamics

Full ground-effect with fan-assisted boundary-layer control
6 aero modes
"I have a problem with Porsches. They're wonderful cars, but I know I could never live with one. I don't go around saying that Porsches are a pile of dung, but I do know that psychologically I couldn't handle owning one" Rowan Atkinson.

Avatar de l’utilisateur
Tom63
Membre V8
Membre V8
Messages : 5028
Inscription : 22 oct. 2008 15:45
Localisation : Entre Paris et les volcans

Re: Gordon Murray T.50

Message par Tom63 » 10 déc. 2019 21:58

Bien entendu, sur le papier, c'est parfait.
Les dimensions sont dingues, du même ordre qu'une MCL F1, c'est à dire bien plus compacte qu'une 458.
Difficile d'y croire mais le fait que Gordon Murray soit Gordon Murray incite à l'optimisme...
Thomas

“When you see the tree you're about to hit, it's called understeer. When you can only hear and feel it, it's oversteer”
Walter Rohrl

Avatar de l’utilisateur
Corsugone
F1 Champion
Messages : 15377
Inscription : 04 mars 2008 20:10
Localisation : Chez Guignol
Contact :

Re: Gordon Murray T.50

Message par Corsugone » 09 avr. 2020 12:13

The first ultra-lightweight six-speed transmission designed for T.50, in conjunction with British transmission technology specialists @xtracltd has arrived! Visit our new website www.gordonmurrayautomotive.com to see the latest update with Xtrac!

"I have a problem with Porsches. They're wonderful cars, but I know I could never live with one. I don't go around saying that Porsches are a pile of dung, but I do know that psychologically I couldn't handle owning one" Rowan Atkinson.

Avatar de l’utilisateur
Corsugone
F1 Champion
Messages : 15377
Inscription : 04 mars 2008 20:10
Localisation : Chez Guignol
Contact :

Vilebrequin T.50

Message par Corsugone » 15 juin 2020 19:18

"I have a problem with Porsches. They're wonderful cars, but I know I could never live with one. I don't go around saying that Porsches are a pile of dung, but I do know that psychologically I couldn't handle owning one" Rowan Atkinson.

Avatar de l’utilisateur
your momo
Formule Renault
Formule Renault
Messages : 1222
Inscription : 08 août 2005 15:10
Véhicules : Elise A111
Porsche 991 Carrera 4S
BMW M135iX
Localisation : Romanel s/Lausanne

Re: Gordon Murray T.50

Message par your momo » 15 juin 2020 20:30

Si Greta lit ça, elle va encore faire la moue...
your momo

Avatar de l’utilisateur
Corsugone
F1 Champion
Messages : 15377
Inscription : 04 mars 2008 20:10
Localisation : Chez Guignol
Contact :

Re: Gordon Murray T.50

Message par Corsugone » 15 juin 2020 21:20

Je doute qu'elle sache ce qu'est un vilebrequin.
"I have a problem with Porsches. They're wonderful cars, but I know I could never live with one. I don't go around saying that Porsches are a pile of dung, but I do know that psychologically I couldn't handle owning one" Rowan Atkinson.

dahu
Membre V8
Membre V8
Messages : 5854
Inscription : 19 août 2005 20:36

Re: Gordon Murray T.50

Message par dahu » 16 juin 2020 11:24

C'est qui Greta ?

Avatar de l’utilisateur
Corsugone
F1 Champion
Messages : 15377
Inscription : 04 mars 2008 20:10
Localisation : Chez Guignol
Contact :

Gordon Murray T.50 : Présentation le 4 aout ...

Message par Corsugone » 26 juil. 2020 17:27

... en attendant la mécanique se dévoile.



"I have a problem with Porsches. They're wonderful cars, but I know I could never live with one. I don't go around saying that Porsches are a pile of dung, but I do know that psychologically I couldn't handle owning one" Rowan Atkinson.

Avatar de l’utilisateur
Corsugone
F1 Champion
Messages : 15377
Inscription : 04 mars 2008 20:10
Localisation : Chez Guignol
Contact :

Re: Gordon Murray T.50

Message par Corsugone » 27 juil. 2020 18:48

"I have a problem with Porsches. They're wonderful cars, but I know I could never live with one. I don't go around saying that Porsches are a pile of dung, but I do know that psychologically I couldn't handle owning one" Rowan Atkinson.

Avatar de l’utilisateur
Corsugone
F1 Champion
Messages : 15377
Inscription : 04 mars 2008 20:10
Localisation : Chez Guignol
Contact :

Re: Gordon Murray T.50

Message par Corsugone » 28 juil. 2020 17:19

On va enfin voir un truc intelligent, profitons de cet alignement des planètes : légèreté - puissance - design.
